INSTRUMENT PANEL LOWER (RH)

GLOVE BOX FOR HONDA LEGEND EX 4 DOORS 4 SPEED AUTOMATIC 1989

ROOF LINING

Item numbers

LAMP ASSY., GLOVE BOX

34254-SD2-013 34254SD2013

Not available

BULB (12V 3.4W) (DAIICHI)

34295-SA5-003

Not available

SWITCH, TRUNK OPENER MAIN

35810-SD4-A01 35810SD4A01

Not available

GROMMET, SCREW, 4MM

62316-679-003 62316679003

Not available

STAY, GLOVE BOX HINGE

66405-SD4-000 66405SD4000

Not available

PLATE, GLOVE BOX STOPPER ARM

66406-SA5-000 66406SA5000

Not available

ARM, GLOVE BOX STOPPER

66407-SA5-000 66407SA5000

Not available

RUBBER, GLOVE BOX STOPPER

66417-SA0-000 66417SA0000

8,09 €(9,06 $)

Unit Price Excl Tax

SPRING, GLOVE BOX ARM

66456-SA5-000 66456SA5000

Not available

BRACKET, GLOVE BOX STOPPER

77123-SD4-000 77123SD4000

Not available

FRAME, GLOVE BOX

77144-SD4-010 77144SD4010

Not available

BOX, GLOVE *NH89L*

77501-SD4-030ZA 77501SD4030ZA

Not available

BOX, GLOVE *B44L*

77501-SD4-030ZB 77501SD4030ZB

Not available

BOX, GLOVE *YR94L*

77501-SD4-030ZC 77501SD4030ZC

Not available

STOPPER, GLOVE BOX

77506-SD4-003 77506SD4003

Not available

COVER, GLOVE BOX SIDE *NH89L*

77511-SD4-000ZA 77511SD4000ZA

Not available

COVER, GLOVE BOX SIDE *B44L*

77511-SD4-000ZB 77511SD4000ZB

Not available

COVER, GLOVE BOX SIDE *YR94L*

77511-SD4-000ZC 77511SD4000ZC

Not available

LOCK ASSY., GLOVE BOX

77520-SD4-023 77520SD4023

Not available

COVER, GLOVE BOX LOCK *NH89L*

77521-SD4-003ZA 77521SD4003ZA

Not available

COVER, GLOVE BOX LOCK *B44L*

77521-SD4-003ZB 77521SD4003ZB

Not available

COVER, GLOVE BOX LOCK *YR94L*

77521-SD4-003ZD 77521SD4003ZD

Not available

LABEL, TRUNK MAIN SWITCH

77535-SD4-000 77535SD4000

4,29 €(4,80 $)

Unit Price Excl Tax

STRIKER ASSY., GLOVE BOX

77540-SD4-010

Not available

COVER, GLOVE BOX LOWER *NH89L*

77572-SD4-010ZA 77572SD4010ZA

Not available

COVER, GLOVE BOX LOWER *B44L*

77572-SD4-010ZB 77572SD4010ZB

Not available

COVER, GLOVE BOX LOWER *YR94L*

77572-SD4-010ZC 77572SD4010ZC

Not available

COVER, GLOVE BOX UPPER

77581-SD4-010 77581SD4010

Not available

CLIP, R. GLOVE BOX UPPER COVER

77591-SD4-000 77591SD4000

Not available

CLIP, L. GLOVE BOX UPPER COVER

77592-SD4-000 77592SD4000

Not available

SCREW, TAPPING, 4X12 (PO)

90101-SA4-000

93913-14280

0,65 €(0,73 $)

Unit Price Excl Tax

SCREW, GLOVE BOX

90101-692-000 90101692000

0,97 €(1,09 $)

Unit Price Excl Tax

SCREW, TAPPING, 4X16 (PO)

90102-SA4-000

93913-14480

0,65 €(0,73 $)

Unit Price Excl Tax

SCREW, TAPPING, 4X10

90107-SB2-003 90107SB2003

Not available

NUT, SPRING, 4MM

90302-SA4-003 90302SA4003

1,38 €(1,54 $)

Unit Price Excl Tax

CLIP C, WIRE HARNESS

90616-SB0-000 90616SB0000

Not available

SCREW-WASHER, 5X12

93894-0501208 938940501208

0,73 €(0,82 $)

Unit Price Excl Tax

SCREW, TAPPING, 4X12

93903-24380 9390324380

10,10 €(11,30 $)

Unit Price Excl Tax

WASHER, PLAIN, 5MM

94103-05700 9410305700

0,65 €(0,73 $)

Unit Price Excl Tax

PIN, SPRING, 4X25

94305-40252 9430540252

1,67 €(1,87 $)

Unit Price Excl Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

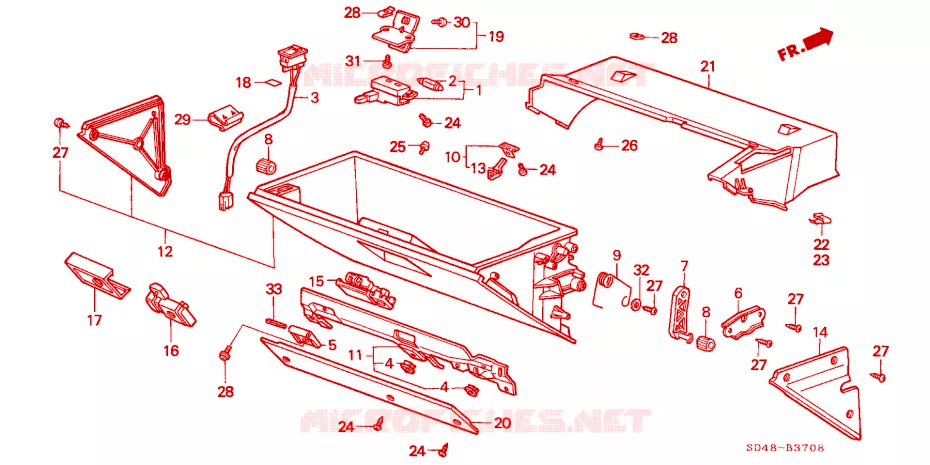

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the GLOVE BOX of your Honda of 1989. Let us know if you have any questions.
