CLUTCH

MAINSHAFT FOR HONDA PRELUDE EX 2 DOORS 4 SPEED AUTOMATIC 1983

COUNTERSHAFT

Item numbers

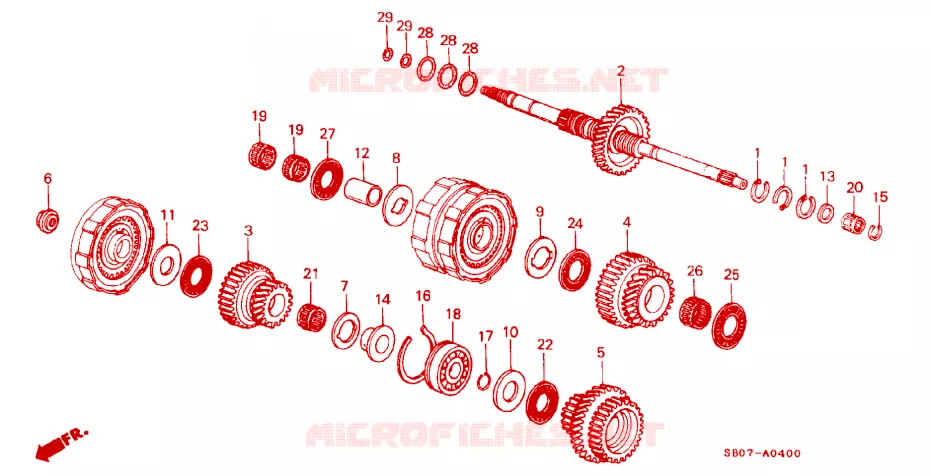

MAINSHAFT Honda PRELUDE 1983 EX 4 speed automatic
1
1
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
25
25
26
27
27
27
28
28
28
28
28
28
29
29
29
29
1
RING, SEALING, 32MM

22814-PA9-023   22814PA9023

22814PA9023
Not available
2
MAINSHAFT

23210-PC9-010  

23210PC9010
Not available
3
GEAR, MAINSHAFT LOW

23411-PC9-000   23411PC9000

23411PC9000
Not available
4
GEAR, MAINSHAFT SECOND

23431-PC9-010  

23431PC9010
Not available
5
GEAR, MAINSHAFT FOURTH

23461-PC9-000   23461PC9000

23461PC9000
Not available
6
NUT, FLANGE, 19MM

90201-PA9-000   90201PA9000

90201PA9000
Not available
7
WASHER, THRUST, 31X43.5X1.5

90406-PA9-000   90406PA9000

90406PA9000
Not available
8
WASHER, THRUST, 26X53X3

90407-PC9-000   90407PC9000

90407PC9000
Not available
9
WASHER, THRUST, 36.5X51X3.0

90410-PC9-010   90410PC9010

90410PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.05

90411-PC9-010   90411PC9010

90411PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.10

90412-PC9-010   90412PC9010

90412PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.15

90413-PC9-010   90413PC9010

90413PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.20

90414-PC9-010   90414PC9010

90414PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.25

90415-PC9-010   90415PC9010

90415PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.30

90416-PC9-010   90416PC9010

90416PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.35

90418-PC9-010   90418PC9010

90418PC9010
Not available
9
WASHER, THRUST, 36.5X51X3.40

90419-PC9-010   90419PC9010

90419PC9010
Not available
10
WASHER, 26X45X3

90417-PC9-000   90417PC9000

90417PC9000
Not available
11
WASHER, THRUST, 26MM

90422-PA9-000   90422PA9000

90422PA9000
Not available
12
COLLAR, MAINSHAFT FOURTH GEAR

90502-PC9-000   90502PC9000

90502PC9000
Not available
13
COLLAR, DISTANCE, 20MM

90506-PC9-000   90506PC9000

90506PC9000
Not available
14
COLLAR, 26MM

90508-PA9-000   90508PA9000

90508PA9000
Not available
15
CIRCLIP, EXTERNAL, 20MM

90603-689-900   90603689900

90603689900
Not available
16
RING, SNAP, 68MM

90609-PA9-000  

90609-PC8-000
 90609PA9000

Unit Price Excl Tax

17
RING, SNAP, 26MM

90613-PA9-000   90613PA9000

90613PA9000
Not available
18
BEARING, BALL, 63/26 (NTN)

91002-PA9-003   91002PA9003

91002PA9003
Not available
19
BEARING, NEEDLE, 32X38X20

91011-PA9-003  

91011PA9003
Not available
20
BEARING, NEEDLE, 20X26X20

91011-428-008   91011428008

91011428008
Not available
21
BEARING, NEEDLE, 31X36X18

91012-PA9-003  

91012-PN6-701
 91012PA9003

Unit Price Excl Tax

22
BEARING, THRUST NEEDLE, 3

91018-PA9-003  

91018PA9003
Not available
23
BEARING, THRUST NEEDLE, 31X47X2

91019-PA9-013   91019PA9013

91019PA9013
Not available
24
BEARING, THRUST NEEDLE, 36X52X2

91023-PC9-013  

91023PC9013
Not available
25
BEARING, THRUST NEEDLE, 4

91026-PC9-003  

91026PC9003
Not available
26
BEARING, NEEDLE, 36X41X18.3

91027-PC9-003  

91027PC9003
Not available
27
BEARING, THRUST NEEDLE, 39X54X2 (NTN)

91031-PC9-003  

91031PC9003
Not available
28
O-RING, 31.2X1.9(ARAI)

91307-PA9-003   91307PA9003

91307PA9003

Unit Price Excl Tax

29
O-RING, 19.8X1.9(ARAI)

91308-PA9-003   91308PA9003

91308PA9003

Unit Price Excl Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the MAINSHAFT of your Honda of 1983. Let us know if you have any questions.

Genuine parts for Honda PRELUDE EX 2 Doors 4 speed automatic 1983
